SanHexa - screen printing panel

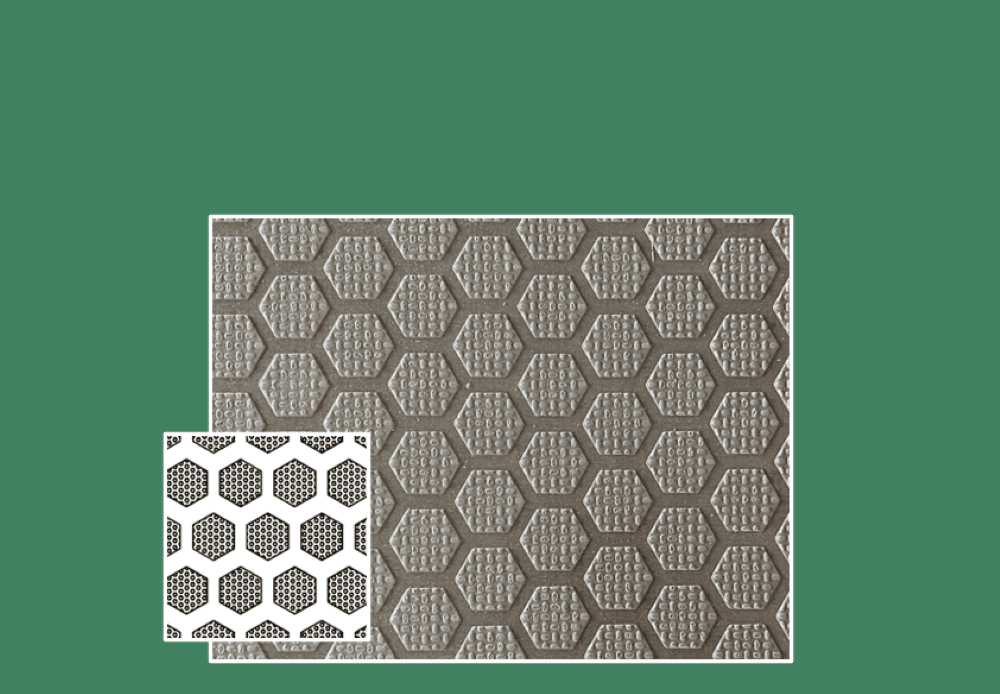

A film is applied to the birch plywood carrier board and then the hexa structure is embossed using a press plate.
This achieves a slip class of R9 (DIN 51130).
size
1250 x 2500 mm
1300 / 1530 x 3050 mm
1800 x 2800 / 3050 mm
1800 x 4000 / 5000 mm
2000 x 3000 / 4000 / 5000 mm
thickness
6,5 - 9- 12 - 15 - 18 - 21 - 24 - 27 - 30 - 35 mm
gluing
EN3142, class 3
coating
250 gr/m²
The grammage can be changed on the customer's request.
colors:

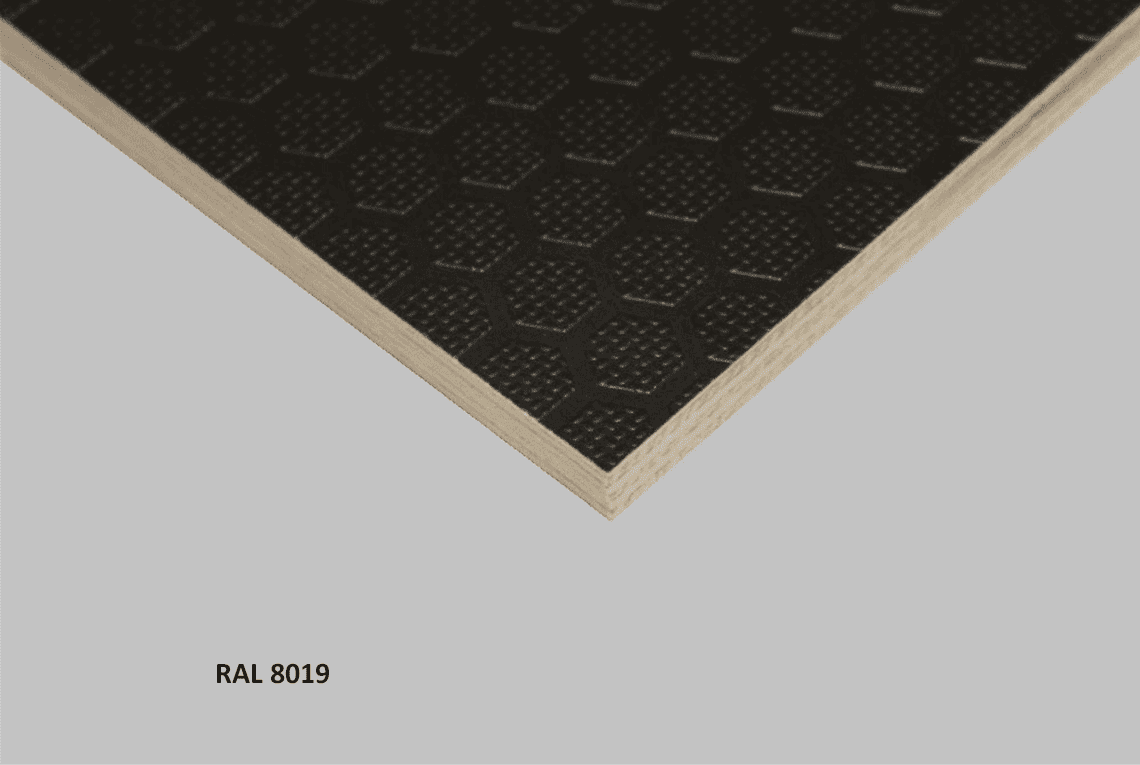

- Brown: RAL 8019 (Grey brown)

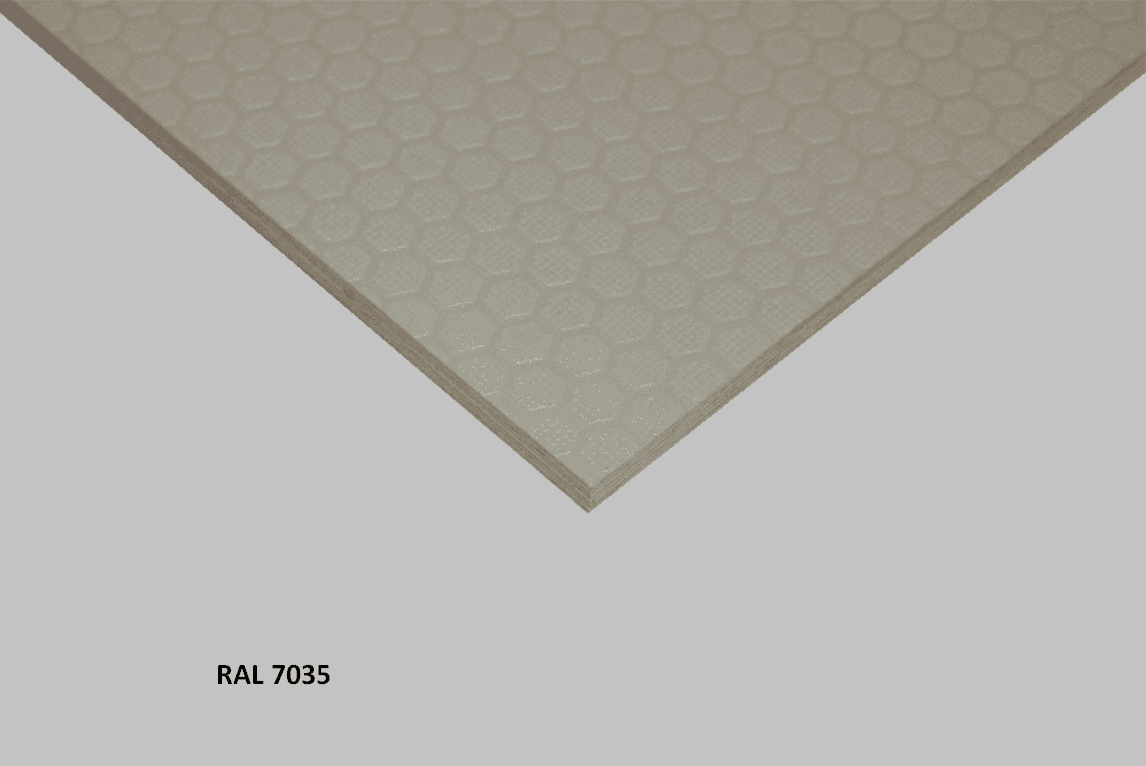

- Grey C.: RAL 7035 (Light grey)

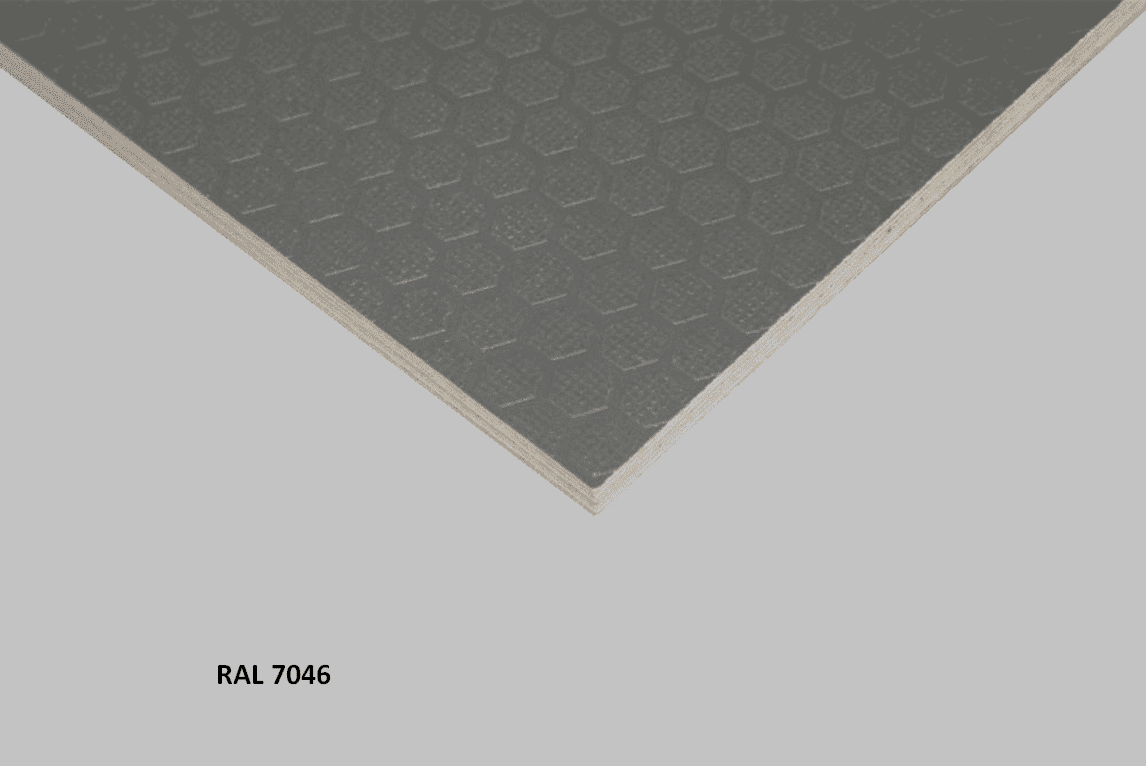

- Grey D.: RAL 7046 (Telegrey 2)
- Smart: RAL 7039 (Quartz grey)

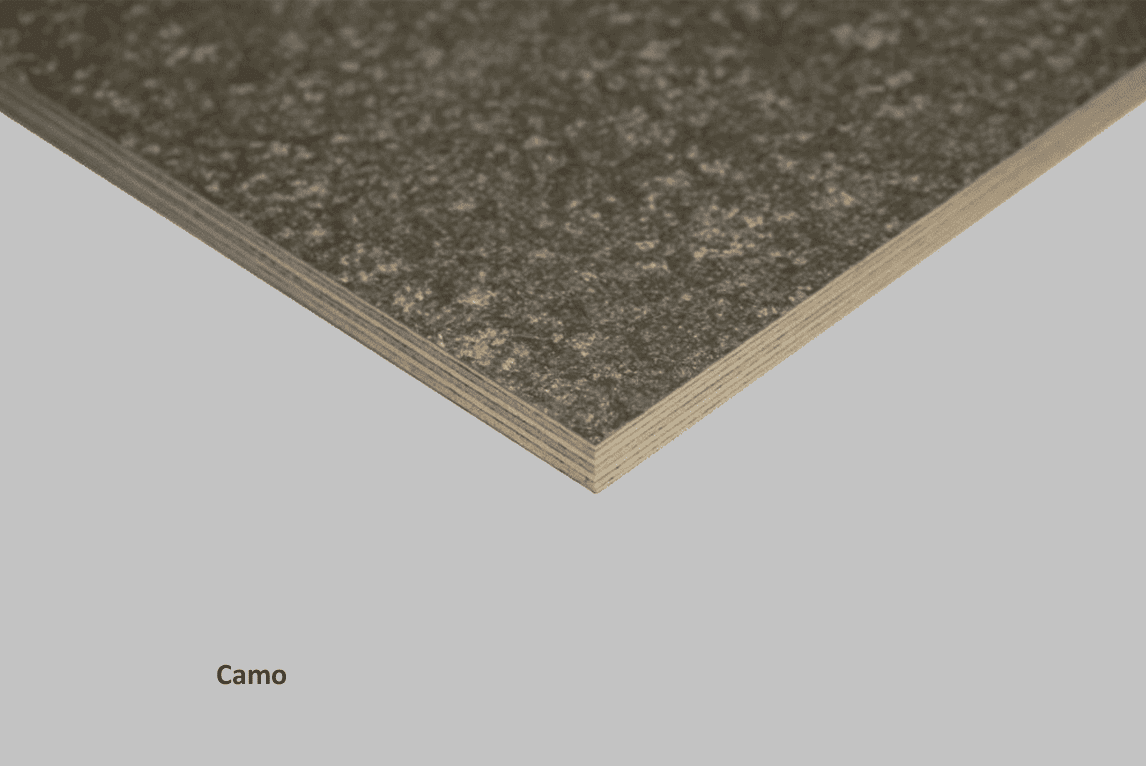

- Camo
The reverse side has a shmooth surface in brown color and the edges are sealed.
ca. 720 kg/m³ (+/-5%)
Data sheet on request.
FSC
Certificate on request.
- grandstand construction
- vehicle construction
- scaffolding
