birch plywood formwork panel

Depending on the product line, a phenolic resin film or melamine resin film is applied to the birch plywood carrier board. These affect the visual appearance of the concrete after casting. Furthermore, the birch formwork panel is glued in class 3, the edges are sealed and, in combination with the coatings, it is highly resistant to water penetration and has a long service life.


size

2000 x 3000 / 4000 / 5000 mm

thickness

9 - 12 - 15 - 18 - 21 - 24 - 27

- 30 mm


gluing

EN314-2 class 3

coating

Brown, Smart, Rhino


It is possible to choose from the following three surface coatings in brown and grey:

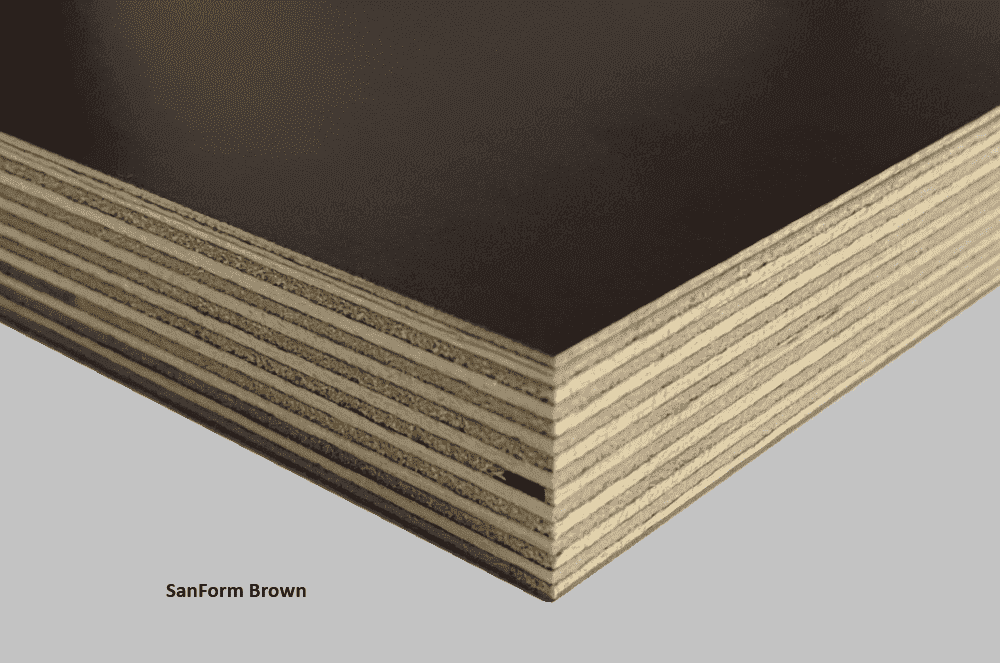

SanForm Brown:

    • brown phenolic resin film (RAL8019)
    • 250gr/m²
    • closed surface

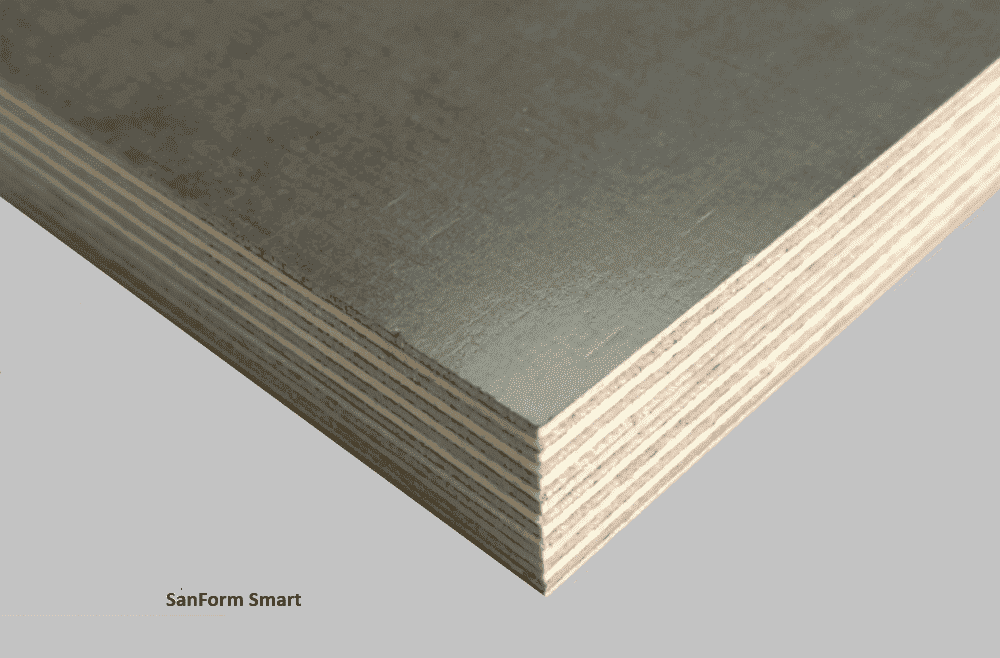

SanForm Smart:

    • grey phenolic resin film (RAL7039)
    • 250gr/m²
    • closed surface

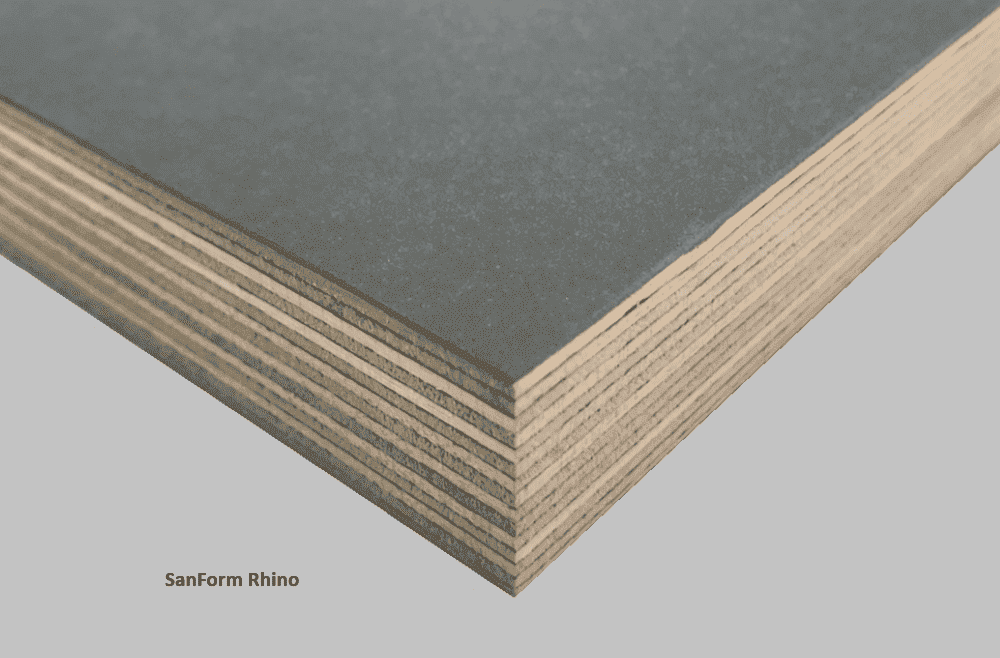

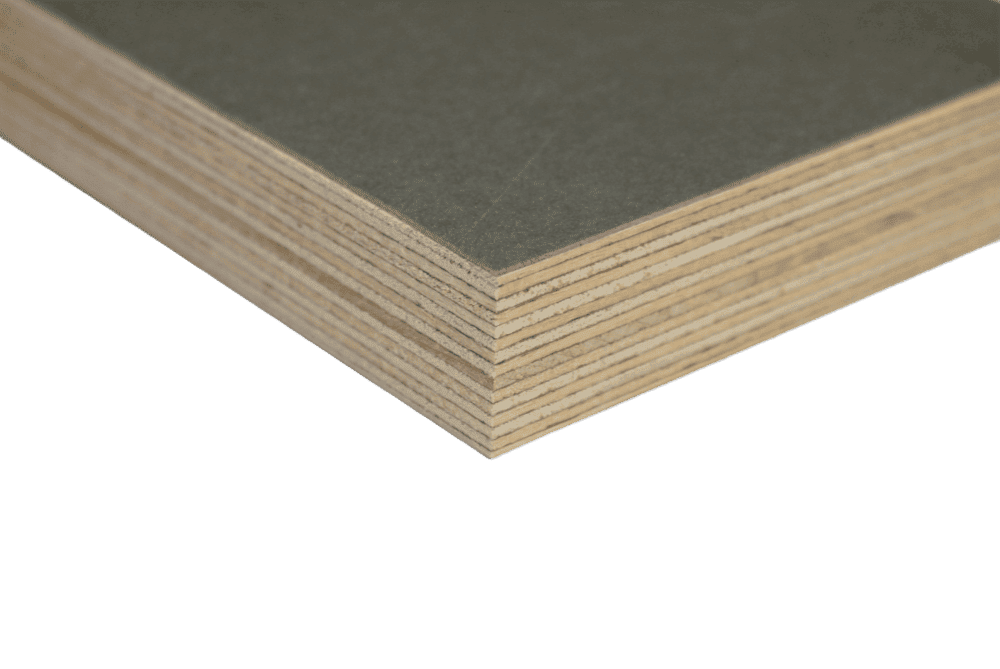

SanForm Rhino:

    • grey modified  melamine resin film
    • 410gr/m²
    • 'semi-open' surface

ca. 720 kg/m³ (+/- 5%)

Data sheet on request.
